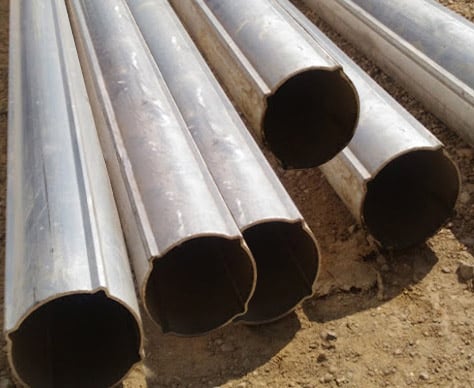

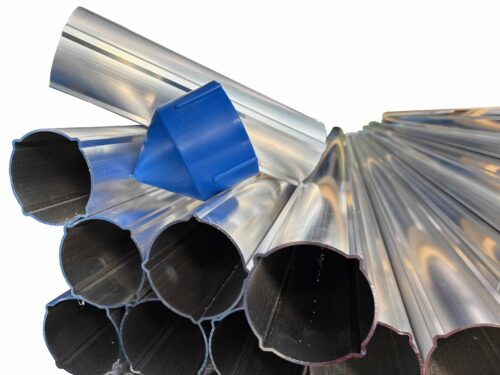

The inclinometer pipe is a pipe with four grooves designed to guide the inclinometer probe. It can be made of Aluminium or ABS and is available in 3-meter-long sections, which are joined together to form a column.
Inclinometer pipes are typically installed in vertical or slightly inclined boreholes. In case of retaining structures such as piles, diaphragms, or sheet piles, they are pre-assembled and inserted during construction.
The coupling sleeves ensure the proper connection of the pipe sections while maintaining the alignment of the grooves.
A bottom plug, which prevents grout from entering during the grouting phase, and a protective top cap complete the column.
