PVC pipes

Our PVC pipes are manufactured with the highest quality materials which, thanks to their chemical and physical features, assurelong lasting pipes and preserve them from corrosion of very aggressive water or alterations due to stray currents.

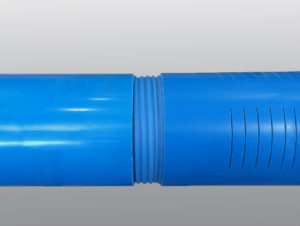

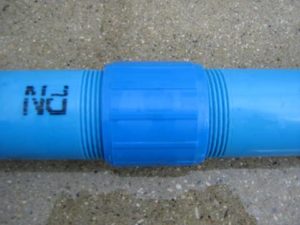

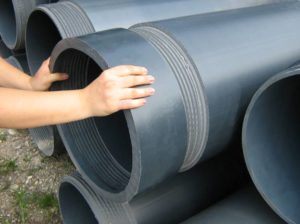

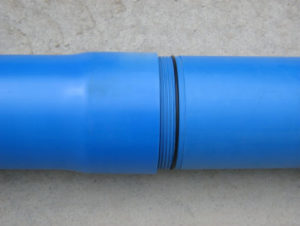

They are non toxic and suitable for drinking water use. Their extremely smooth surface avoids any kind of encrustation, moreover their lightness and type of connection –threaded with socket (Pic. 1) or flush jointed (Pic. 2) –allow easy and quick pipe laying.

All pipes are carefully inspected and connections are tested. When applicable they are manufactured according to DIN 4925 norm requirements.

PHYSICAL AND MECHANICAL FEATURES

FEATURESTESTING METHODS DIN NORM - UNI NORM
Specific gravityg / cm3 1,4
Yield pointKg / cm2 338method ASTMD 638
Load at breakKg / cm2 435method ASTMD 638
Elongation at break% 8method ASTMD 638
Tensile strength N / mm2 55DIN 53455
Kg / cm2 555UNI 5819/66
Modulus of elasticity Kg / cm2 26.000UNI 7219/72
N / mm2 2.600DIN 53457
Shock resistance 20°Cno breaksDIN 53453UNI 6323

PVC PIPES RANGE



DIAMETERWALL THICKNESSMAX. OVERALL
DIMENS.
USABLE
INSIDE
DIAMETER
WEIGHTSTANDARD
LENGTH
mminchesmm PNmmmmKg/mtmt
21,1 a1/2"3PN2027.015.10.252 1 - 3 - 6
33,3 a1"3.3PN12,540.026.70.480 1 - 3 - 6
33,3 a1"4.3PN2040.024.70.580 1 - 3 - 6
42 a1"1/43.7PN12,549.034.60.680 1 - 3 - 6
48 a1"1/23.3PN1055.041.40.710 1 - 3 - 6
48 a1"1/24.0PN12,555.040.00.740 1 - 3 - 6
48 a1"1/25.4PN2055.037.21.069 1 - 3 - 6
602"4.2PN1065.051.61.126 1 - 3 - 6
602"4.6PN12,565.850.81.220 1 - 3 - 6
752"1/24.5PN1080.066.01.524 1 - 3 - 6
752"1/25.3PN12,582.064.41.760 1 - 3 - 6
88.93"5.0PN1094.080.01.930 1 - 3 - 6
88.93"6.0PN12,596.878.02.343 1 - 3 - 6
903"5.0PN1095.080.01.930 1 - 3 - 6
100-5.0PN10105.090.02.312 1 - 3 - 6
113 b-5.0PN10120.0103.02.630 1 - 3 - 6
1144"5.4PN10119.0103.22.730 1 - 3 - 6
1144"7.2PN12,5122.099.63.570 1 - 3 - 5
118 b-5.0PN10122.0108.02.620 1 - 3 - 5
1254"1/26.0PN12,5131.0113.03.320 1 - 3 - 5
1254"1/29.3PN20138.0106.45.000 1 - 3 - 5
1405"5.4PN10145.0129.23.380 1 - 3 - 5
1405"6.7PN12,5148.0126.64.150 1 - 3 - 5
1405"10.4PN20155.0119.26.260 1 - 3 - 5
145 b-6.7PN12,5152.0131.64.300 1 - 3 - 5
1606"6.2PN10167.0147.64.430 1 - 3 - 5
1606"7.7PN12,5170.0144.65.450 1 - 3 - 5
1606"11.9PN20178.0136.28.200 1 - 3 - 5
165-6.2PN10172.0152.64.580 1 - 3 - 5
165-7.7PN12,5175.0149.65.620 1 - 3 - 5
170-7.7PN12,5180.0154.65.800 1 - 3 - 5
1806"1/27.0PN10188.0166.05.630 1 - 3 - 5
1806"1/28.6PN12,5191.0162.86.850 1 - 3 - 5
1806"1/213.4PN20201.0153.210.370 1 - 3 - 5
195 b-7.7PN10204.0179.67.020 1 - 3 - 5
2007"7.7PN10210.0184.66.880 1 - 3 - 5
2007"9.6PN12,5214.0180.88.806 1 - 3 - 5
2007"14.9PN20224.0170.212.810 1 - 3 - 5
2258"8.7PN10237.0207.68.750 1 - 3 - 5
2258"10.8PN12,5241.0203.410.750 1 - 3 - 5
2258"16.7PN20252.0191.616.700 1 - 3 - 5
2509"9.0PN10262.0232.010.080 1 - 3 - 5
2509"11.9PN12,5268.0226.213.160 1 - 3 - 5
2509"18.0PN20280.0214.019.400 1 - 3 - 5
28011"12.5PN10300.0255.016.100 1 - 3 - 5
28011"16.0PN12,5307.0248.020.200 1 - 3 - 5
28011"21.0PN20317.0238.026.300 1 - 3 - 5
315 b13"15.0PN12,5339.0285.021.900 1 - 3 - 5
33013"14.5PN10353.0301.021.260 1 - 3 - 5
33013"19.0PN12,5362.0292.027.460 1 - 3 - 5
33013"24.0PN20372.0282.034.130 1 - 3 - 5
40016"19.0PN12,5432.0362.033.640 1 - 3 - 5
40016"21.5PN12,5437.0357.037.800 1 - 3 - 5
400 b16"27.0PN20448.0346.046.800 1 - 3 - 5
450 c18"18.3PN10450.0413.437.0001 - 3 - 5,5
500 c20"20.0PN10500.0460.045.5001 - 3 - 5,5
500 c20"29.7PN12,5500.0440.667.5001 - 3 - 5,5
630 c24"24.0PN10630.0582.068.2501 - 3 - 5,5

a – M/M + COUPLING
b – Minimum quantity to produce 500 mt
c -Only flush jointed

Available on request:

  1. Different lengths
  2. Glue connection pipes
  3. Rub gaskets (O-ring) for higher tightness of connections
